Product Details
- Parameter
- Introduction
| Indicator | Unit | 72 " | 84 " |
| wide steel wheel | mm | 1855 | 2134 |
| steel wheel diameter | mm | 609 | 609 |
| vibrational force | kg | 4000 | 4500 |
| vibration frequency | Vpm | 2600 | 2600 |
| Number of blades | pieces | 216 | 288 |
| weight | mpa | 16-21 | 16-21 |
| weight | L/mm | 40-90 | 40-90 |
| weight | kg | 650 | 750 |
| length | mm | 2100 | 2300 |
| width | mm | 1000 | 1000 |
| height | mm | 800 | 800 |

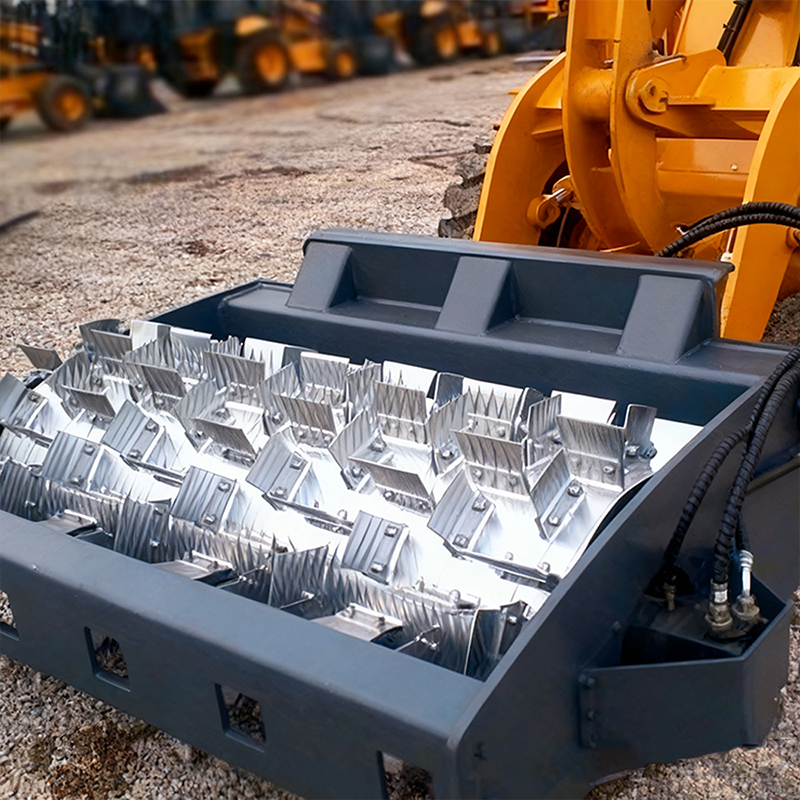

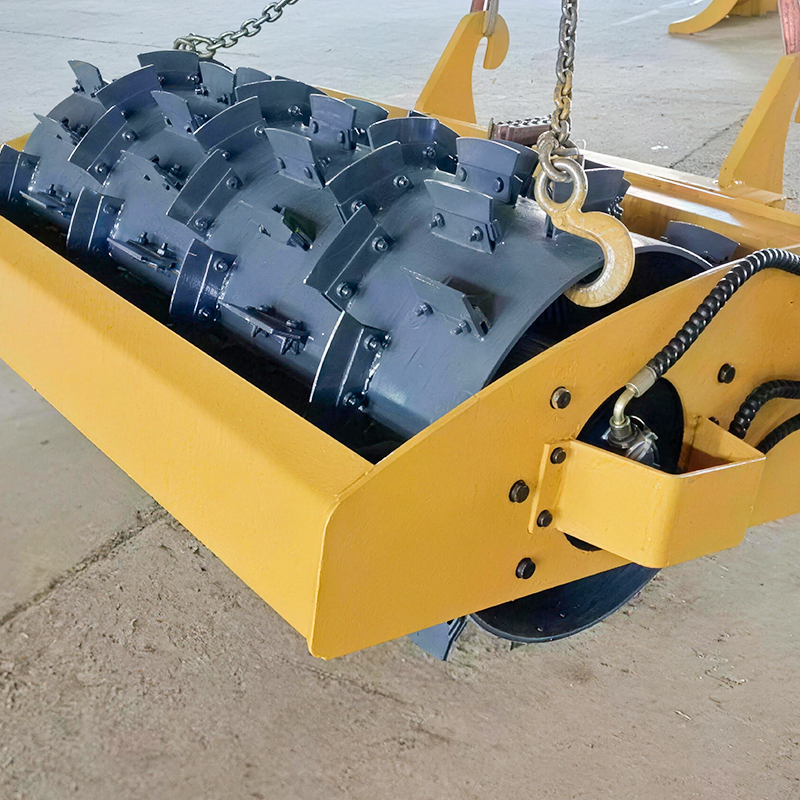

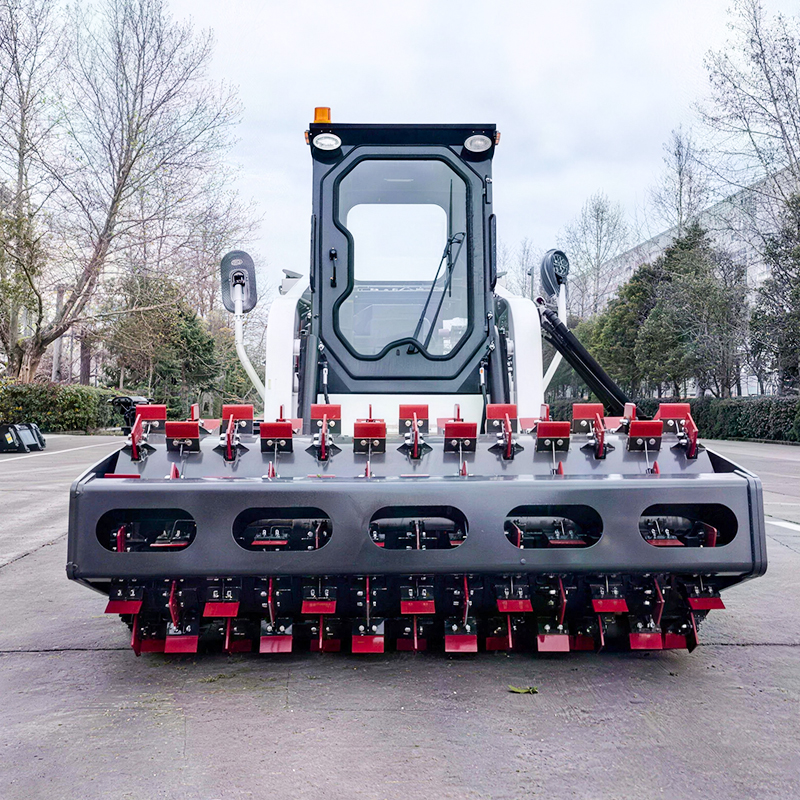

The ice breaker consists of a main frame, mounting frame, connecting frame, support arm, hanging bracket, ice breaker, hydraulic power unit, storage rack, control system, etc. The machine is installed on the hanging board at the front of the truck and completes ice breaking operations during the truck's journey.
Reason for use
Due to precipitation, such as rain, snow, freezing rain, or fog droplets, encountering the ground with a temperature below 0℃, snow accumulation or icing phenomena occur, including frozen residual snow, uneven ice tracks, road surface water from melting snow, or other reasons leading to the formation of hard ice layers in cold seasons. When road icing occurs, the friction between the wheels and the road surface is greatly reduced, making it easy to skid and brake, resulting in traffic accidents. Pedestrians are also prone to slipping and causing injuries. This can lead to the closure of highways due to snow accumulation and icing on the roads, and the closure of civil airports due to extensive snow and ice accumulation on runways and aprons, preventing the transportation of personnel and materials, thus severely affecting traffic.
Structural function
The ice breaker consists of a main frame, mounting frame, connecting frame, support arm, hanging bracket, ice breaker, hydraulic power unit, storage rack, control system, etc. The machine is installed on the hanging board at the front end of the truck and completes ice breaking operations during the truck's journey.
Characteristic principle
The machine is equipped with a hydraulic power unit that is independent of the chassis, eliminating the need for an additional power source.
The ice-breaking blade is made of special steel, featuring excellent low-temperature performance, high toughness, and wear resistance. The machine weighs 907kg and has a forced down-pressing function, achieving good ice-breaking results.
The maximum single ice-breaking thickness of this machine can reach 50mm.
The structural components of this machine are made of low-alloy high-strength structural steel Q345D, which exhibits excellent low-temperature performance.
The machine is equipped with an accumulator to absorb shocks, adapt to uneven road surfaces, and ensure effective ice breaking.
The machine is quickly connected to the chassis vehicle, allowing for quick setup by a single person, and is interchangeable with devices such as snow removal machines.
This machine features a lateral floating function to adapt to different road conditions during operation.
Operators can complete all operations of the entire machine from the cab, greatly improving work efficiency.
The machine is equipped with a backup switch, facilitating the installation of electrical accessories by users.
This machine can be installed on the chassis of various brands and models of cars.
The machine has been sprayed with multiple coats of anti-rust primer and orange-yellow topcoat, providing strong corrosion resistance and a harmonious and elegant overall appearance.
During the production and assembly process, various tooling, fixtures, and advanced laser cutting technology are employed to ensure reliable overall quality of the machine.
The machine is equipped with four auxiliary support wheels that can be quickly connected, facilitating the storage, movement, assembly, and disassembly of the equipment.
